Length / diameter measurement:

• MWW-5
  Optimized sophisticated analog filter and amplifier to prepare inductive sensor input signal for measurement, analysis and display. For extremely high resolution length measurement up to 1 micron.

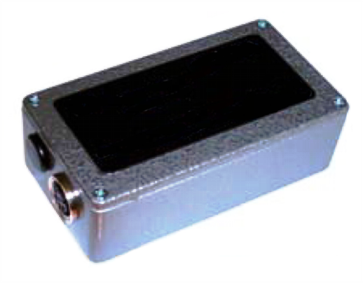

• MWW-6
  Sophisticated analog filter and amplifier required to prepare Diameter measurement sensor input signal for measurement, analysis and display. The MWW-6 is a two wire 4 to 20mA LVDT signal conditioner. It is designed for long signal transmission distances due to its low susceptibility to noise and cable resistance. The two wires carry both power and signal, the transducer’s position is indicated by the amount of current consumed from 4 to 20mA full scale. Cable breakage results in a loss of current flow, which indicates a fault.
